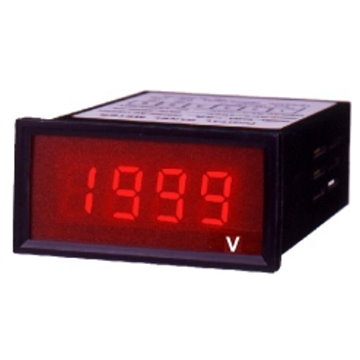

| 微處理盤面型電錶 |
 型號 |
DP-732 |
| 產品特色 |
| ．Measuring DC V/A, AC V/A |
| ．Measuring RTD Temp. (DP-32) |
| ．4~20mA, 1~5V measurment |
|
|
|
|
| 產 品 規 格 |
| Display |
3 1/2 digits (1999), 0.56" LED high |
| Polarity Display |
"一" symbol is displayed automatically |
| Over range Indication |
" 1 " or " -1 " |
| Conversion Rate |
2.5/sec.(DC) or 1/sec.(AC) |
| Accuracy |
DC± 0.1% FS.± 1digit
AC± 0.25% FS.± 1digit
RTD±0.2% FS.±1digit |
| Operating Temp |
0~60℃/ Below 80%R.H. |
| Storage Temp |
-10~70℃/ Below 70% R.H. |
| Power Supply |
AC 115/230V±10%, 50/60Hz |
| Option |
DC 12, 24, 48, 120V±20% |
| Power Consumption |
Approx. 2VA |
| Weight |
Approx. 250g (DP-732) |
| Dielectric Strength |
AC 1500V/1min ( Input/Power ) |
| Isolation Resistance |
More than 100MΩ at 500VDC |
| Dimensions |
72(W) x 36(H) x 117(D)mm - - -DP-732 |
| Panel Cut-Out |
68(W) x 33(H)mm - - -DP-732 |
|
|
 |
|
|
|
