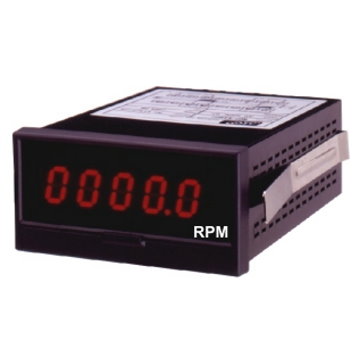

| 數字式頻率/轉速/線速表 |
 型號 |
MS-50,ML-50 |
| 產品特色 |
| ．Accuracy 0.05% |
| ．Rate free setting 1~99999 pulse/revolution of input |
| ．DIN case 96 x 48mm |
|
|
|
|
| 產 品 規 格 |
| Display |
5 digits (99999), 0.56" LED high |
| Conversion Rate |
1~3sec.(auto change) |
| Parameter setting |
1~99999 ( touch switches ) |
| Accuracy |
±0.05% F.S. ±1 digit |
| Operating Temp |
0~60℃/ Below 80%R.H. |
| Storage Temp |
-10~70℃/ Below 70% R.H. |
| Power Supply |
AC 115/230V±10%, 50/60Hz |
| Option |
DC 12, 24, 48, 120V±20% |
| Power Consumption |
Approx. 3VA |
| Weight |
Approx. 320g |
| Dielectric Strength |
AC 1500V/1min ( Input/Power ) |
| Isolation Resistance |
More than 100MΩ at 500VDC |
| Dimensions |
96(W) x 48(H) x 104(D)mm |
| Panel Cut-Out |
91.5(W) x 44(H)mm |
|
|
 |
|
|
|
