| 微處理安培小時錶 |
 型號 |
MAH-85 |
| 產品特色 |
| ．Max. display 8 digits ( AH ) |
| ．Max. display 4 1/2 digits ( A ) |
| ．Input signal DC A or Shunt |
| ．Rate free setting |

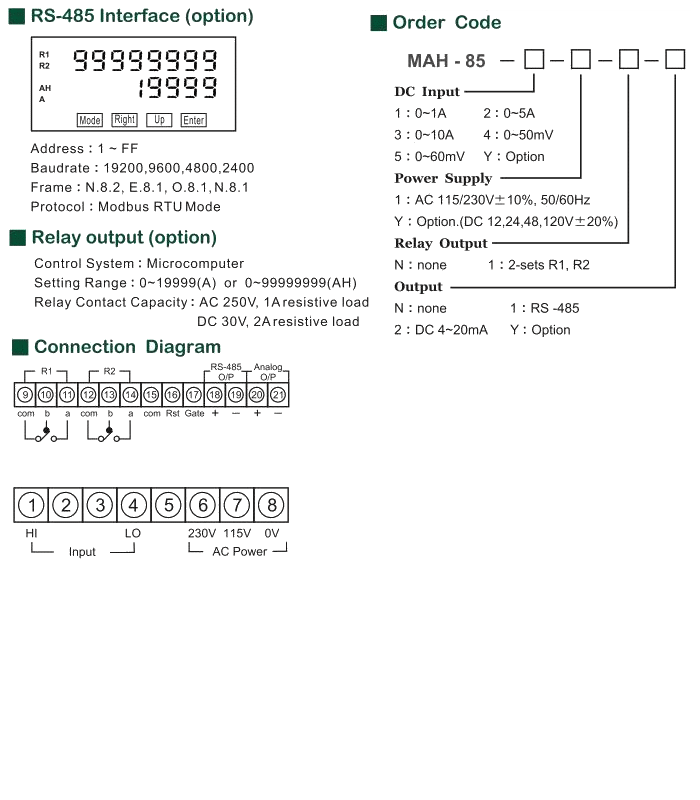

| ．RS-485 interface (Option) |
| ．2 x Relay output |
| ．DIN case 96 x 48mm |
|
|
|
|
| 產 品 規 格 |
| Display |
8 digits Red LED 0.3" high ( AH )
4 1/2 digits Green LED 0.3" high ( A ) |
| Input |
DC 1A, 5A, 10A or shunt |
| Parameter setting |
Touch switches |
| Memory |
NV RAM |
| Accuracy |
±0.25% FS.±2 digit (23±5℃) |
| Operating Temp |
0~50℃/ Below 80%R.H. |
| Storage Temp |
-10~60℃/ Below 70% R.H. |
| Power Supply |
AC 115/230V±10%, 50/60Hz |
| Option |
DC 12, 24, 48, 120V±20% |
| Power Consumption |
Approx. 4VA |
| Weight |
Approx. 550g |
| Dielectric Strength |
AC 2000V/1min ( Input/Power ) |
| Isolation Resistance |
More than 100MΩ at 500VDC |
| Dimensions |
96(W) x 48(H) x 144(D)mm |
| Panel Cut-Out |
91.5(W) x 44(H)mm |
|
|
 |
|
|
|
