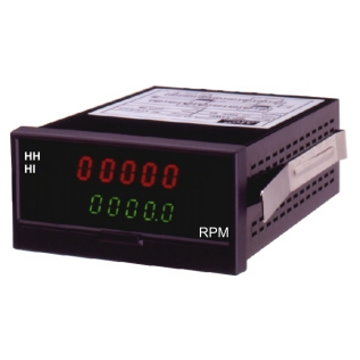

| 頻率/轉速設定錶 |
 型號 |
MHS-52,MSS-52 |
| 產品特色 |
| ．Accuracy ±0.03% |
| ．Max. Input：30KHz |
| ．Input pulse of revolution can be free setting |
| ．RS-485 interface (Option) |
| ．2 x Relay output |
| ．DIN case 96 x 48mm |
|
|
|
|
| 產 品 規 格 |
| Display |
5 digits Red LED 0.4" (10.1mm) high
5 digits Green LED 0.3" (7.6mm) high |
| Conversion Rate |
1/sec |
| Parameter setting |
1~99999 ( touch switches ) |
| Memory |
NV RAM |
| Accuracy |
±0.03% (23±5℃) |
| Operating Temp |
0~60℃/ Below 80%R.H. |
| Storage Temp |
-10~70℃/ Below 70% R.H. |
| Power Supply |
AC 115/230V±10%, 50/60Hz |
| Option |
DC 12, 24, 48, 120V±20% |
| Power Consumption |
Approx. 5VA |
| Weight |
Approx. 550g |
| Dielectric Strength |
AC 1500V/1min ( Input/Power ) |
| Isolation Resistance |
More than 100MΩ at 500VDC |
| Dimensions |
96(W) x 48(H) x 144(D)mm |
| Panel Cut-Out |
91.5(W) x 44(H)mm |
|
|
 |
|
|
|
