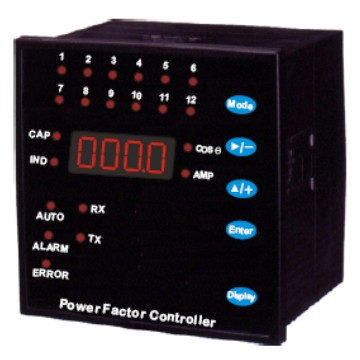

| 自動功因控制器 |
 型號 |
APF-6,APF-12 |
| 產品特色 |
| ．Capable of auto-control in 6 steps (APF-6) or 12 steps (APF-12) |
| ．Microprocessor control circuit |
| ．Automatic C/K |
| ．Reading display cos (3digits), current (4 digits) |
| ．Field programmable CT ratio |
| ．Automatic switching of frequency 50Hz or 60Hz |

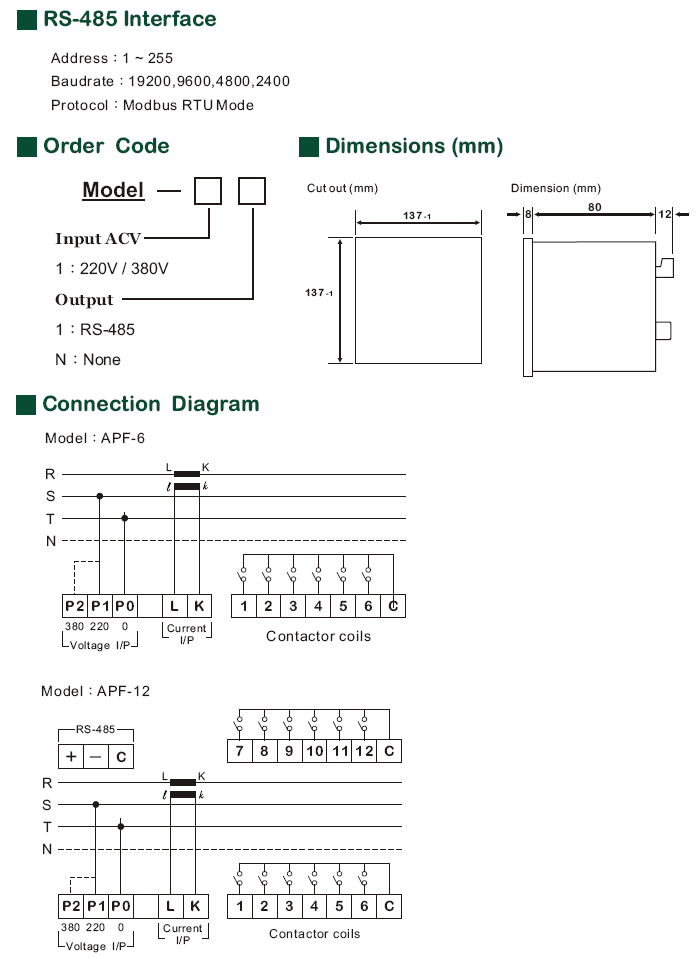

| ．RS-485 interface (option) |
| ．DIN case 144 144mm |
|
|
|
|
| 產 品 規 格 |
| Display |
3 digits Red LED 0.56" high - - - cosθ
4 digits Red LED 0.56" high - - - current |
| Parameter setting |
Touch switches |
| Memory |
NV RAM |
| Accuracy |
± 0.5% FS. |
| Relay contact capacity |
AC 250V, 5A |
| Power factor setting |
0.7 IND ~ 0.7 CAP |
| Operation time delay |
0~999 secretary |
| Operating Temp |
0~60 / Below 90%R.H. |
| Storage Temp |
-10~70 / Below 80% R.H. |
| Dielectric Strength |
DIN-IEC688, AC 2.3KV/1min, between terminal.
AC 2.8KV/1min, between terminal and case |
| Isolation Resistance |
DC 500V, 100M at above terminals |
| Dimensions |
144(W) X 144(H) X 100(D)mm |
|
|
 |
|
|
|
