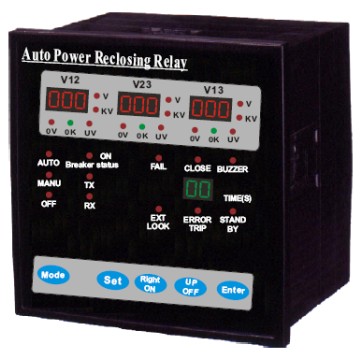

| 電源自動復閉器 |
 型號 |
APR-100,APR-100R |
|
|
|
|
| 產 品 規 格 |
| Display |
3 digits Red LED 0.3" high - - - Voltage
2 digits Green LED 0.3" high - - - Time |
| Parameter setting |
Touch switches |
| Memory |
NV RAM |
| Accuracy |
± NV RAM
1% FS. (Voltage) |
| OV, UV delay time |
0~99 sec free setting |
| Reclose delay time |
0~99 sec free setting |
| Reclose times |
1~9 times free setting |
| Relay contact capacity |
AC 250V, 5A |
| Input voltage |
AC 110/220V 20% |
| Operating Temp |
0~60 / Below 90%R.H. |
| Storage Temp |
-10~70 / Below 80% R.H. |
| Power Supply |
AC 90~260V, 50/60Hz |
| Power Consumption |
Approx. 7VA |
| Dielectric Strength |
DIN-IEC688, AC 2.3KV/1min, between terminal.
AC 2.8KV/1min, between terminal and case |
| Isolation Resistance |
DC 500V, 100M at above terminals |

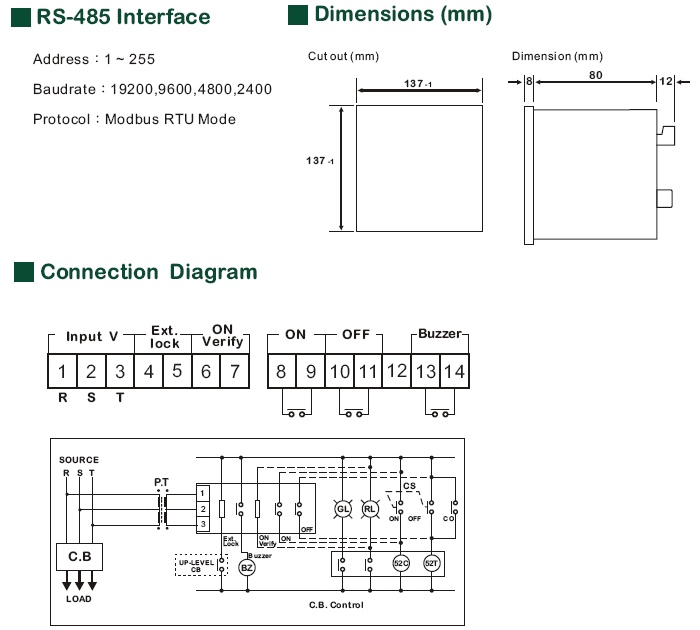

| Dimensions |
144(W) X 144(H) X 100(D)mm |
|
|
 |
|
|
|
