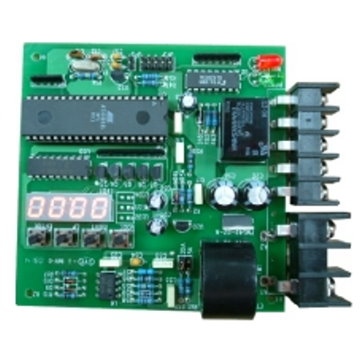

| 數字式電流設定PC板 |
 型號 |
PMS-40PC |
| 產品特色 |
| ．Max. Input 20A |
| ．Relay output time delay 0~99sec. |
| ．True RMS value |
| ．Rate free setting |
| ．Relay output |
|
|
|
|
| 產 品 規 格 |
| Display |
Red LED 0.28" high |
| Max Display |
4 Digits ( 9999 ) |
| Over range Indication |
" o.L " |
| Conversion Rate |
1/sec. |
| Decimal Point |
Settable to any digit position by front sheet switch |
| Input |
AC 0~5A, 0~20A |
| Accuracy |
±0.25% FS. |
| Operating Temp |
0~60℃/ Below 80%R.H. |
| Storage Temp |
-10~70℃/ Below 70% R.H. |
| Power Consumption |
Approx. 5VA |
| Dielectric Strength |
AC 1500V/1min ( Input/Power ) |
| Isolation Resistance |
More than 100MΩ at 500VDC |
|
|
 |
|
|
|
