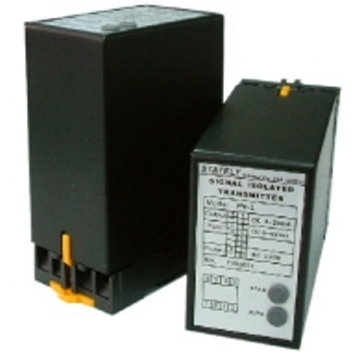

| 溫度隔離傳送器 |
 型號 |
PTR-1 |
| 產品特色 |
| ．Accuracy ± 0.15% |
| ．Wide input and output range selection |
| ．Plug-in type |
|
|
|
|

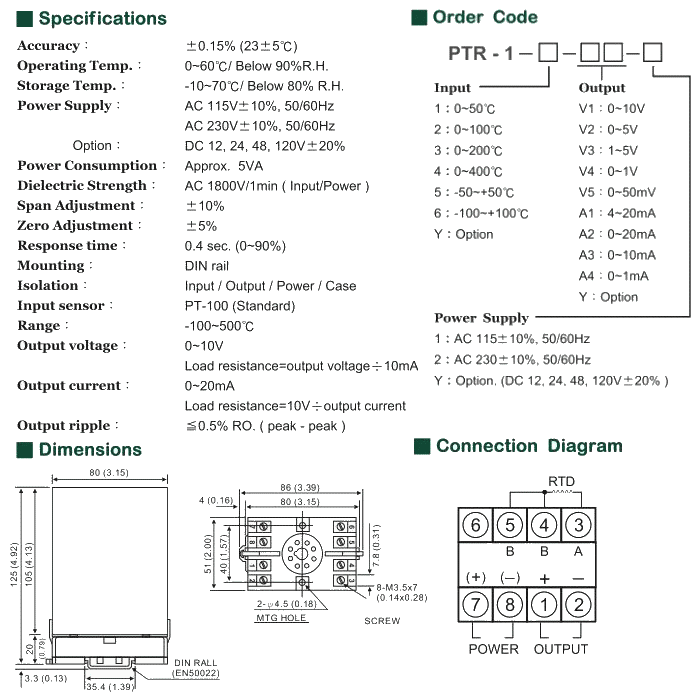

| 產 品 規 格 |
| Accuracy |
±0.15% (±23.5°C) |
| Operating Temp |
0~60℃/ Below 90%R.H. |
| Storage Temp |
-10~70℃/ Below 80% R.H. |
| Power Supply |
AC 115/230V±10%, 50/60Hz |
| Option |
DC 12, 24, 48, 120V±20% |
| Power Consumption |
Approx. 5VA |
| Dielectric Strength |
AC 1800V/1min ( Input/Power ) |
|
|
 |
|
|
|
