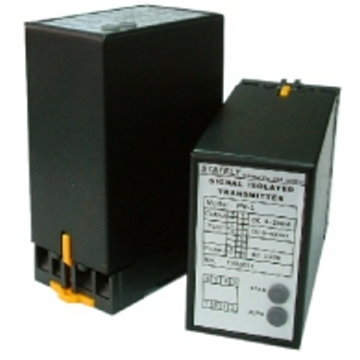

| 直流隔離傳送器(TWO OUTPUT) |
 型號 |
PV-2 |
| 產品特色 |
| ．Accuracy ± 0.1% |
| ．Wide input and output range selection |
| ．Plug-in type |
|
|
|
|

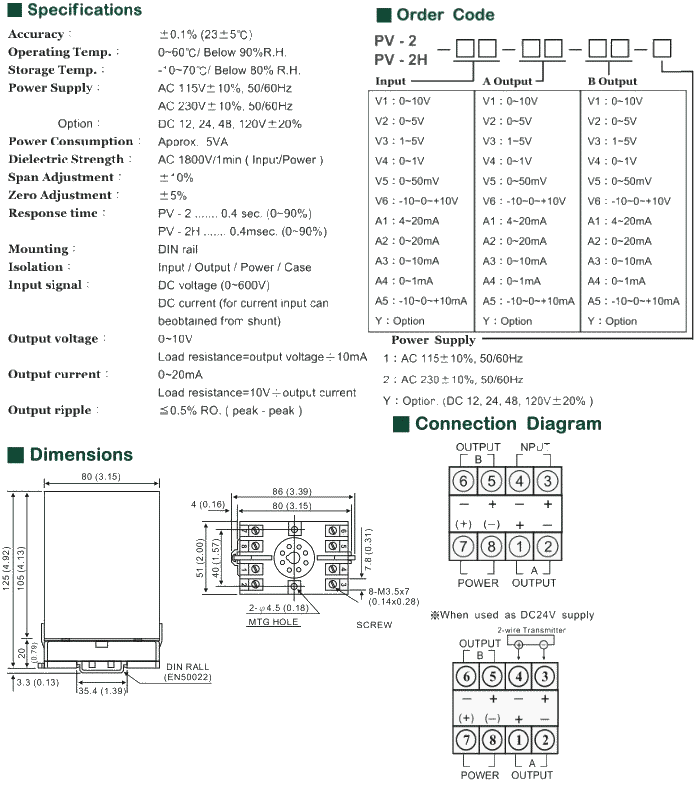

| 產 品 規 格 |
| Accuracy |
±0.1% (±23.5°C) |
| Operating Temp |
0~60℃/ Below 90%R.H. |
| Storage Temp |
-10~70℃/ Below 80% R.H. |
| Power Supply |
AC 115/230V±10%, 50/60Hz |
| Option |
DC 12, 24, 48, 120V±20% |
| Power Consumption |
Approx. 5VA |
|
|
 |
|
|
|
