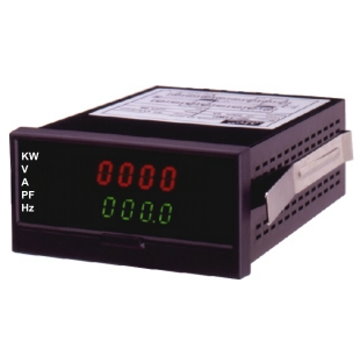

| 微處理雙顯示電力錶 |
 型號 |
MP-12MD |
| 產品特色 |
| ．4 unit V, A, KW, cosθ, Hz |
| ．Can change V, A, cosθ , Hz by front sheet switch |
| ．True RMS V/A |
| ．Rate free setting |
| ．Input / Output / Power is isolated |
| ．RS-485 interface (Option) |
| ．DIN case 96 x 48mm |
|
|
|
|
| 產 品 規 格 |
| Display |
Red LED 0.4" high ( Watt )
Green LED 0.3" high ( V,A,PF,Hz) |
| Max Display |
4 Digits ( Watt )
4 Digits ( V,A,PF,Hz ) |
| Over range Indication |
" o.L " |
| Conversion Rate |
1/sec. |
| Isolation |
Input/Output/Power/Case |
| Memory |
EEPRON |
| Accuracy |
±0.25% FS.±2 digit (23±5℃) |
| Operating Temp |
0~60℃/ Below 80%R.H. |
| Storage Temp |
-10~70℃/ Below 70% R.H. |
| Power Supply |
AC 115/230V±10%, 50/60Hz |
| Option |
DC 12, 24, 48, 120V±20% |
| Power Consumption |
Approx. 4VA |
| Weight |
Approx. 550g |
| Dielectric Strength |
AC 2000V/1min ( Input/Power ) |
| Isolation Resistance |
More than 100MΩ at 500VDC |
| Dimensions |
96(W) x 48(H) x 144(D)mm |
| Panel Cut-Out |
91.5(W) x 44(H)mm |
|
|
 |
|
|
|
