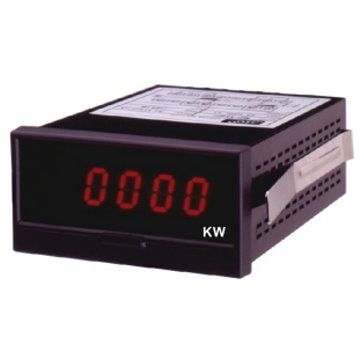

| 微處理瓦特/功因/乏 錶 |
 型號 |
MP-W |
| 產品特色 |
| ．Max. display 4 digits |
| ．Auto. Range ( Watt ) |
| ．CT or PT rate free setting |
| ．True RMS V/A |
| ．RS-485 interface (Option) |
| ．DIN case 96 x 48mm |
|
|
|
|
| 產 品 規 格 |
| Display |
4digits Red LED 0.56" (14.2mm) high |
| Parameter setting |
Touch switches |
| Accuracy |
±0.5% FS.±2 digit ( 23 ±5℃) |
| Operating Temp |
0~60℃/ Below 80%R.H. |
| Storage Temp |
-10~70℃/ Below 70% R.H. |
| Power Supply |
AC 115/230V±10%, 50/60Hz |
| Option |
DC 12, 24, 48, 120V±20% |
| Power Consumption |
Approx. 4VA |
| Weight |
Approx. 550g |
| Dielectric Strength |
AC 2000V/1min ( Input/Power ) |
| Isolation Resistance |
More than 100MΩ at 500VDC |
| Dimensions |
96(W) x 48(H) x 144(D)mm |
| Panel Cut-Out |
91.5(W) x 44(H)mm |
|
|
 |
|
|
|
