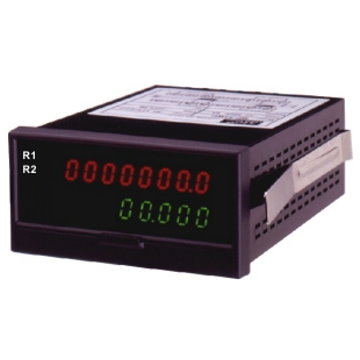

| 微處理瞬間值/累積值電錶 |
 型號 |
MT-85 |
| 產品特色 |
| ．Max. display 8 digits (Total) |
| ．Max. display 4 1/2 digits (Rate) |
| ．Analog Input (DC 4~20mA or 1~5V) |
| ．Rate free setting |
| ．Programable time base sec, min, hour |
| ．Math-rootextractor function |
| ．RS-485 interface (Option) |
| ．2 x Relay output |
| ．DIN case 96 x 48mm |
|
|
|
|
| 產 品 規 格 |
| Display |
8 digits Red LED 0.3" high 4 1/2 digits
Green LED 0.3" high |
| Input |
DC V/A, AC V/A or Analog output |
| Parameter setting |
Touch switches |
| Memory |
NV RAM |
| Accuracy |
±0.25% FS.±2 digit (23±5℃) |
| Operating Temp |
0~50℃/ Below 80%R.H. |
| Storage Temp |
-10~60℃/ Below 70% R.H. |
| Power Supply |
AC 115/230V±10%, 50/60Hz |
| Option |
DC 12, 24, 48, 120V±20% |
| Power Consumption |
Approx. 4VA |
| Weight |
Approx. 550g |
| Dielectric Strength |
AC 2000V/1min ( Input/Power ) |
| Isolation Resistance |
More than 100MΩ at 500VDC |
| Dimensions |
96(W) x 48(H) x 117(D)mm |
| Panel Cut-Out |
91.5(W) x 44(H)mm |
|
|
 |
|
|
|
