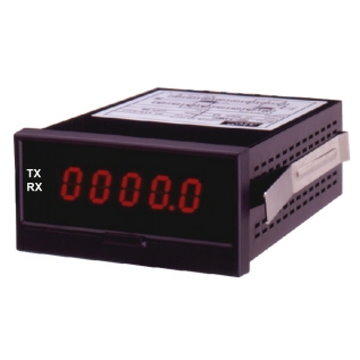

| RS-485 |
 型號 |
RS-40,RS-50,RS-80,RS-88 |
| 產品特色 |
| ．RX .TX indication |
| ．Protocol Modbus |
| ．DIN Case 96 x 48mm |
|
|
|
|

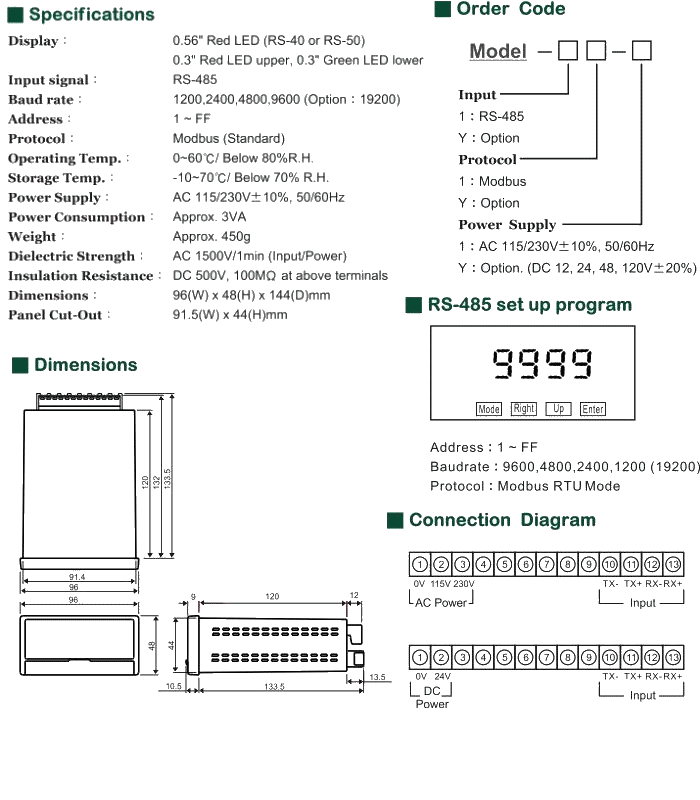

| 產 品 規 格 |
| Display |
0.56" Red LED (RS-40 or RS-50)
0.3" Red LED upper, 0.3" Green LED lower |
| Operating Temp |
0~60℃/ Below 80%R.H. |
| Storage Temp |
-10~70℃/ Below 70% R.H. |
| Power Supply |
AC 115/230V±10%, 50/60Hz |
| Power Consumption |
Approx. 3VA |
| Weight |
Approx. 450g |
| Dielectric Strength |
AC 1500V/1min ( Input/Power ) |
| Isolation Resistance |
DC 500V, 100M at above terminals |
| Dimensions |
96(W) x 48(H) x 144(D)mm |
| Panel Cut-Out |
91.5(W) x 44(H)mm |
|
|
 |
|
|
|
