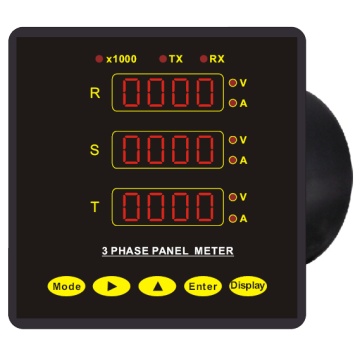

| 三相電壓/電流錶 |
 型號 |
CP-3V,CP-3A |
| 產品特色 |
| ．TRMS Voltage or Current |
| ．Fullscale rate free setting |
| ．Case 110 X 110mm |
|
|
|
|
| 產 品 規 格 |
| Display |
Red LED 0.4" high
Max. Display：4 Digits ( 9999 ) |
| Over range Indication |
" o.L " |
| Conversion Rate |
1/sec. |
| Decimal Point |
Settable to any digit position by front
sheet switch |
| Input |
Voltage 0~600V, Current 0~5A |
| Input Frequency |
45~65Hz |
| Output |
RS-485 or RS-232 (Modbus)-Option |
| Accuracy |
± 0.25% FS. 1 digit ( 23 ± 5°C ) |
| Operating Temp |
0~60 / Below 80%R.H. |
| Storage Temp |
-10~70 / Below 70% R.H. |
| Power Supply |
AC 90~260V, 50/60Hz |
| Option |
DC 24, 48, 120V 20% |
| Power Consumption |
Approx. 6VA |
| Dielectric Strength |
AC 1500V/1min ( Input/Power ) |
| Isolation Resistance |
More than 100M at 500VDC |

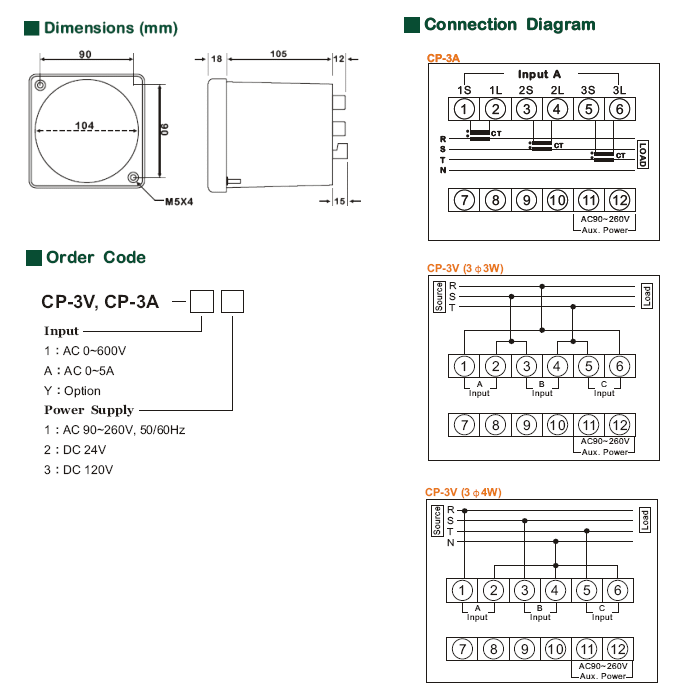

| Dimensions |
110(W) X 110(H) X 140(D)mm |
|
|
 |
|
|
|
