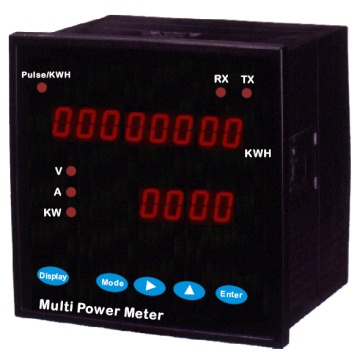

| 多功能電力錶 |
 型號 |
PTH,PWH |
| 產品特色 |
| ．Max. display 8 digits (KWH) |
| ．Max. display 4 digits can chang |
| ．Voltage. Current or Watt |
| ．Current Max. 50A |
| ．RS-485 interface (Option) |
| ．Pulse output (Option) |
| ．DIN Case 144 x 144mm |
|
|
|
|

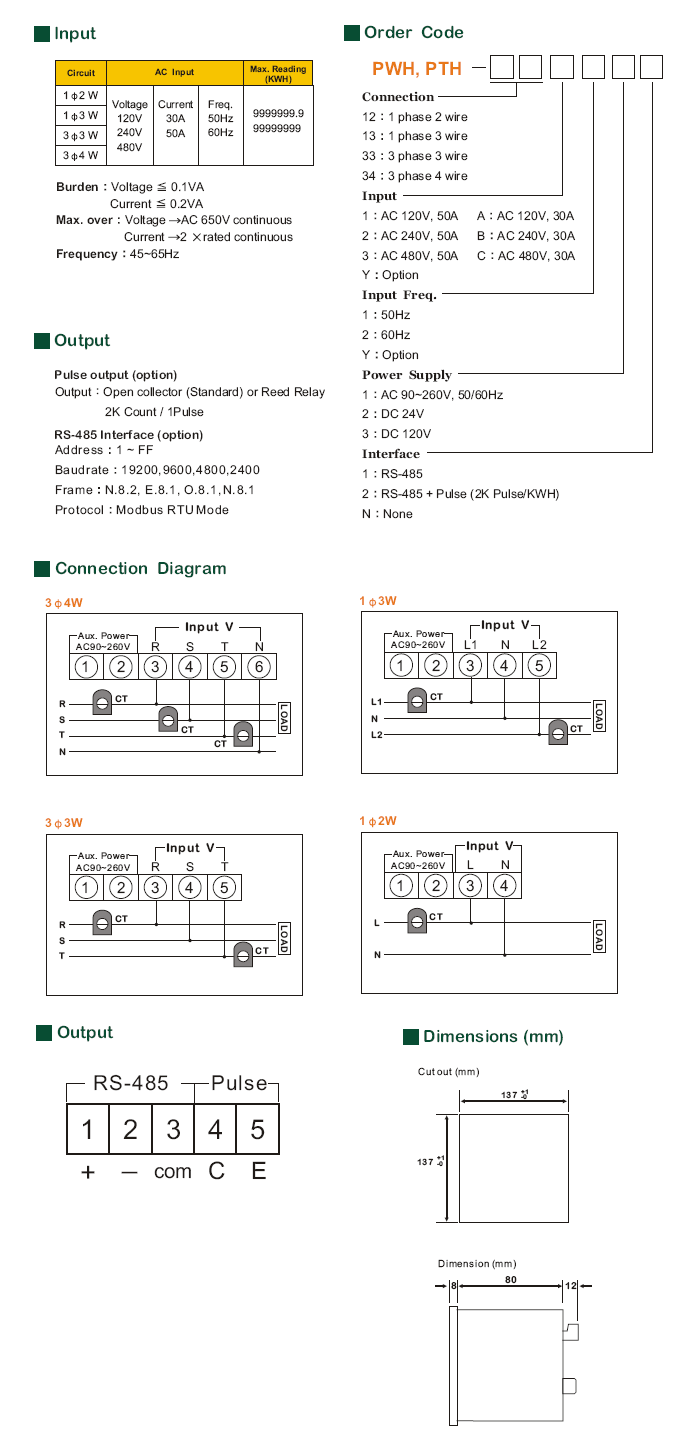

| 產 品 規 格 |
| Display |
8 digits LED 0.56" high (KWH)
4 digits LED 0.56" high (V, A,KW) |
| Parameter setting |
Touch switches |
| Memory |
NV RAM |
| Accuracy |
± 0.25% FS. 2 digits ( V, A )
± 0.5% FS. 2 digits |
| Operating Temp |
0~50 / Below 80%R.H. |
| Storage Temp |
-10~60 / Below 70% R.H. |
| Power Supply |
AC 90~260V, 50/60Hz |
| Option |
DC 24, 48, 120V 20% |
| Power Consumption |
Approx. 8VA |
| Weight |
Approx.650g |
| Dielectric Strength |
AC 2000V/1min ( Input/Power ) |
| Isolation Resistance |
More than 100M at 500VDC |
| Dimensions |
144(W) X 144(H) X 120(D)mm |
|
|
 |
|
|
|
