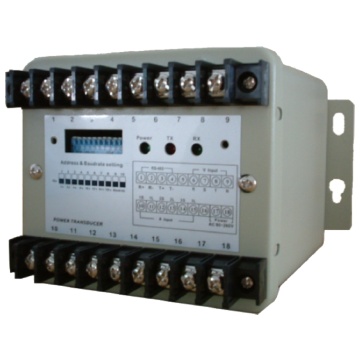

| 集合式電力轉換器 |
 型號 |
FP600 |
| 產品特色 |
| ．Display of all the electric parameters V, A, W,Var, VA, PF, Hz, WH, VarHVarH ect. |
| ．True RMS conversion. |
| ．Memory for all setup and energy data. |
| ．RS-485 Modbus-RTU mode standard communication interface output. |
| ．Aux.Power AC 90~260V, 50/60Hz |
|
|
|
|
| 產 品 規 格 |
| System |
1φ2W, 1φ3W, 3φ3W, 3φ4W |
| Isolation |
Input/Output/Power/Case |
| Operating Temp |
0~60 / Below 90%R.H. |
| Storage Temp |
-10~70 / Below 80% R.H. |
| Temp Coefficient |
± 0.1% F.S/°C |
| CT, PT ratio |
1~9999 |
| Interface |
RS-485(Standard), or RS-232 |
| Mounting |
Steel sheet |
| Housing Material |
Wall mounting |
| Power Supply |
AC 90~260V, 50/60Hz |
| Option |
DC 24, 120V 20% |
| Power Consumption |
Approx. 7VA |
| Dielectric Strength |
DIN-IEC688, AC 2.3KV/1min, between terminal.
AC 2.8KV/1min, between terminal and case |
| Isolation Resistance |
DC 500V, 100M at above terminals |
| Dimensions |
136(W) X 95(H) X 141(D)mm |
|
|
 |
|
|
|
