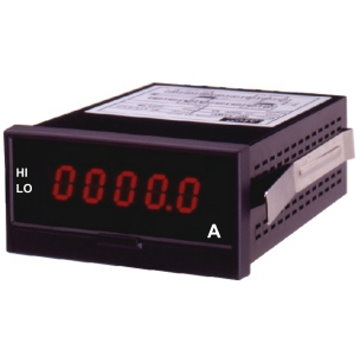

| 微處理盤面型電錶 |
 型號 |
DM-52D,DM-52A |
| 產品特色 |
| ．4 1/2 Digits (Option 0~50000) |
| ．True RMS V/A |
| ．Rate free setting |
| ．Output DC 24V (30mA) for two wire sensor |
| ．4~20mA, 1~5V Measurement |
|
|
|
|
| 產 品 規 格 |
| Display |
Red LED 0.56" (14.2mm) high |
| Max Display |
4 1/2 Digits (±19999) |
| Polarity Display |
"一" symbol is displayed automatically |
| Over range Indication |
" o.L " |
| Conversion Rate |
2.5/sec.(DC) or 1/sec.(AC) |
| Decimal Point |
Settable to any digit position by front sheet switch |
| Accuracy |
DC±0.05% FS. (23±5℃)
AC±0.1% FS. (23±5℃) |
| Operating Temp |
0~60℃/ Below 80%R.H. |
| Storage Temp |
-10~70℃/ Below 70% R.H. |
| Housing Material |
ABS,UL94V-0 |
| Power Supply |
AC 115/230V±10%, 50/60Hz |
| Option |
DC 12, 24, 48, 120V±20% |
| Power Consumption |
Approx.5VA |
| Weight |
Approx.500g |
| Dielectric Strength |
AC 1500V/1min ( Input/Power ) |
| Isolation Resistance |
More than 100MΩ at 500VDC |
| Dimensions |
96(W) x 48(H) x 144(D)mm |
| Panel Cut-Out |
91.5(W) x 44(H)mm |
|
|
 |
|
|
|
